Erado Basic Simulator

Erado Basic is a simulator for erasure noise: it does not model other noise types such as depolarising or dephasing noise. Erasure noise converts a qubit into a distinct, checkable “lost” state rather than flipping or randomising it, which changes how error mitigation needs to be approached. Erado Basic lets you validate programs and mitigation strategies against this noise model ahead of running on erasure-prone hardware. It runs on a Qiskit AerSimulator backend using the statevector method: an exact, full-state simulation rather than an approximation. For the underlying theory, see Background in the Erado documentation.



Task submission

QCaaS provides a 16-qubit Erado Basic simulator available via QPU ID qpu:uk:4:a63d17f4a0. Only OpenQASM 2.0 programs are currently supported. Results are always returned in binary count format (see Accessing Results, or the Examples below, for what that looks like). Job submission, polling, and result retrieval otherwise follow the same Job patterns as for QPU tasks.

Note

EradoConfig requires oqc-qcaas-sdk version 0.1.22 or later; see oqc-qcaas-sdk on PyPI for the latest release.



Task configuration

Erado Basic tasks use EradoConfig in place of CompilerConfig. Erasure-noise simulation needs its own controls, such as which noise model to run and how erasures are detected and handled, that don’t map onto standard QPU compiler settings.

Note

Submitting a CompilerConfig instead of an EradoConfig still works: only repeats (shot count) carries over, and the task runs as a noiseless simulation with erasure_rate=0.0 (the current default; may vary by deployment). Tket optimisations, error mitigation, and other CompilerConfig settings do not apply to Erado Basic and are ignored.

EradoConfig and its supporting types are re-exported from the SDK package:

>>> from oqc_qcaas_sdk import EradoConfig, ErasureModel, IdlingErrorConfig

They can equally be imported from compiler_config, where they are defined:

>>> from compiler_config.experimental.erado.config import EradoConfig, ErasureModel

EradoConfig is a dataclass, so a configuration can be built and checked without a live connection:

>>> config = EradoConfig(
...     repeats=1000,
...     erasure_rate=0.01,
...     erasure_model=ErasureModel.TRANSPILER_PASS,
... )
>>> config.erasure_model
<ErasureModel.TRANSPILER_PASS: 'transpiler_pass'>
>>> config.validate()  # raises ValueError for out-of-range parameters

The full set of parameters is:

Table 1: EradoConfig parameters

Parameter	Description	Notes
repeats	Number of shots.	Type: int (>= 1) Default: 1000
erasure_rate	Per-gate probability that a gate causes an erasure; if it fires, every qubit that gate acts on becomes erased. Total erasure incidence therefore compounds with the number of erasable gates in your circuit, not just circuit depth.	Type: float (0-1) Default: 0.5. This is high (50%); most workloads will want a lower value. When post_selection=True, values above 0.01 are currently rejected to avoid excessive shot-rejection overhead.
erasure_before_gates	When True, the gate whose trial triggers an erasure is itself deleted along with subsequent gates on the affected qubit(s). When False (default), only gates after the triggering gate are deleted.	Type: bool Default: False
erasure_model	Simulation method. CIRCUIT_SAMPLER uses erado.models.ErasureCircuitSampler; TRANSPILER_PASS uses erado.models.ErasurePassJob.	Type: ErasureModel Default: CIRCUIT_SAMPLER CIRCUIT_SAMPLER is more memory-hungry at scale; prefer TRANSPILER_PASS for larger circuits.
post_selection	When True, shots containing erasures are discarded and re-run until repeats accepted shots are collected. Retries are uncapped and bounded only by the job’s execution timeout, so cost scales with erasure_rate. When False (the default), shots with a detected erasure are not discarded: they’re included in the returned counts with no indication that a measurement was affected, since Erado does not currently return per-shot erasure flags.	Type: bool Default: False
get_fidelities	Return per-shot circuit fidelity alongside results. Not currently supported; True is rejected.	Type: bool Default: False
false_positive_rate	Rate at which erasure checks incorrectly signal an erasure.	Type: float (0-1) Default: 0.0
false_negative_rate	Rate at which erasure checks miss a true erasure. This is what limits how effective post_selection can be: an undetected erasure is accepted, and its corrupted measurement is kept.	Type: float (0-1) Default: 0.0
idling_error	An optional IdlingErrorConfig instance describing idle-period padding. Padding does not carry its own error rate: inserted idle gates simply become additional erasable gate positions subject to the same erasure_rate.	Type: IdlingErrorConfig Default: None (disabled) See Table 2: IdlingErrorConfig parameters below.

Warning

With post_selection=True, erasure_rate values above 0.01 are currently rejected to avoid excessive shot-rejection overhead. This is easy to hit by accident: raising erasure_rate on a working post_selection=True job, for example to make erasures more visible, will cause the job to fail.

Idling error models the noise a qubit accumulates while it sits idle between gates: idle periods are padded with extra gates, which become additional erasable positions. When set, idling_error takes an IdlingErrorConfig instance with the following fields; see Idling error in the Erado documentation for the underlying mechanism and modelling rationale.

Table 2: IdlingErrorConfig parameters

Parameter	Description	Notes
max_idle_length	Maximum number of idle gates inserted into an idle period.	Type: int Default: 14 Values below 2 insert no idle gates.
idle_gate	Qiskit gate inserted during idle periods.	Type: str, one of "id", "x", "y", "z" Default: "id"
circuit_gate_time	Unit duration assigned to each existing circuit gate.	Type: float (> 0) Arbitrary relative units, not physical time. Default: 1.0
idle_gate_time	Unit duration assigned to each inserted idle gate.	Type: float (> 0) Arbitrary relative units, not physical time. Default: 0.8
sequence_min_length_ratio	Minimum ratio between an idle period and the inserted gate sequence length.	Type: float (>= 0) Default: 1.0



Examples

The following examples build up from a noiseless baseline to erasure with and without post-selection, then to configuring idling error, all using the same 5-qubit GHZ circuit. The counts and metrics shown are taken from real runs against the simulator.

All examples share these imports and this circuit:

import asyncio, os
from oqc_qcaas_sdk import OqcSdk, EradoConfig, ErasureModel, IdlingErrorConfig

ERADO_QPU_ID = "qpu:uk:4:a63d17f4a0"
URL   = os.environ["OQC_URL"]
TOKEN = os.environ["OQC_AUTHENTICATION_TOKEN"]

GHZ = """\
OPENQASM 2.0;
include "qelib1.inc";
qreg q[5];
creg c[5];
h q[0];
cx q[0], q[1];
cx q[1], q[2];
cx q[2], q[3];
cx q[3], q[4];
measure q -> c;
"""



Noiseless baseline

>>> async def run():
...     async with OqcSdk(url=URL, authentication_token=TOKEN) as sdk:
...         job = sdk.create_job(
...             program=GHZ,
...             qpu_id=ERADO_QPU_ID,
...             config=EradoConfig(repeats=2000, erasure_rate=0.0),
...         )
...         proxy = await job.execute(timeout_s=300)
...         if job.error:
...             raise RuntimeError(f"[{job.error.error_code}] {job.error.error_message}")
...         return proxy.results()[0].data["c"]
>>> counts = run_async(run())
>>> set(counts) == {"00000", "11111"}
True

proxy.results()[0].data holds one entry per classical register, each mapping bitstring to count. For this run, counts was:

{'00000': 1002, '11111': 998}

With erasure_rate=0.0, Erado Basic behaves like any other noiseless Qiskit simulator: results split close to evenly between the GHZ state’s two ideal outcomes, with the usual shot noise you’d see from any simulator or real device. The remaining examples on this page omit the error check shown above for brevity; see Exception-based Error Handling in the Jobs documentation for the full pattern.



Erasure without post-selection

Enabling erasure with post_selection left at its default (False) includes corrupted measurements in the results with no indication that anything went wrong. Pass fetch_diagnostics=True to create_job() to populate job.metrics after execution:

>>> async def run():
...     async with OqcSdk(url=URL, authentication_token=TOKEN) as sdk:
...         job = sdk.create_job(
...             program=GHZ,
...             qpu_id=ERADO_QPU_ID,
...             config=EradoConfig(
...                 repeats=2000,
...                 erasure_rate=0.01,
...                 erasure_model=ErasureModel.CIRCUIT_SAMPLER,
...             ),
...             fetch_diagnostics=True,
...         )
...         proxy = await job.execute(timeout_s=300)
...         return proxy.results()[0].data["c"], job.metrics
>>> counts, metrics = run_async(run())
>>> metrics["n_accepted"] == 2000 and metrics["n_rejected"] > 0
True

For this run, counts and the relevant entries of metrics were:

{'00000': 1005, '10000': 14, '11000': 12, '11100': 11, '11110': 14, '11111': 944}

    n_accepted: 2000
    n_rejected: 111
rejection_rate: 0.0555

Note

erasure_model is set explicitly here to show the syntax, even though CIRCUIT_SAMPLER is also the default.

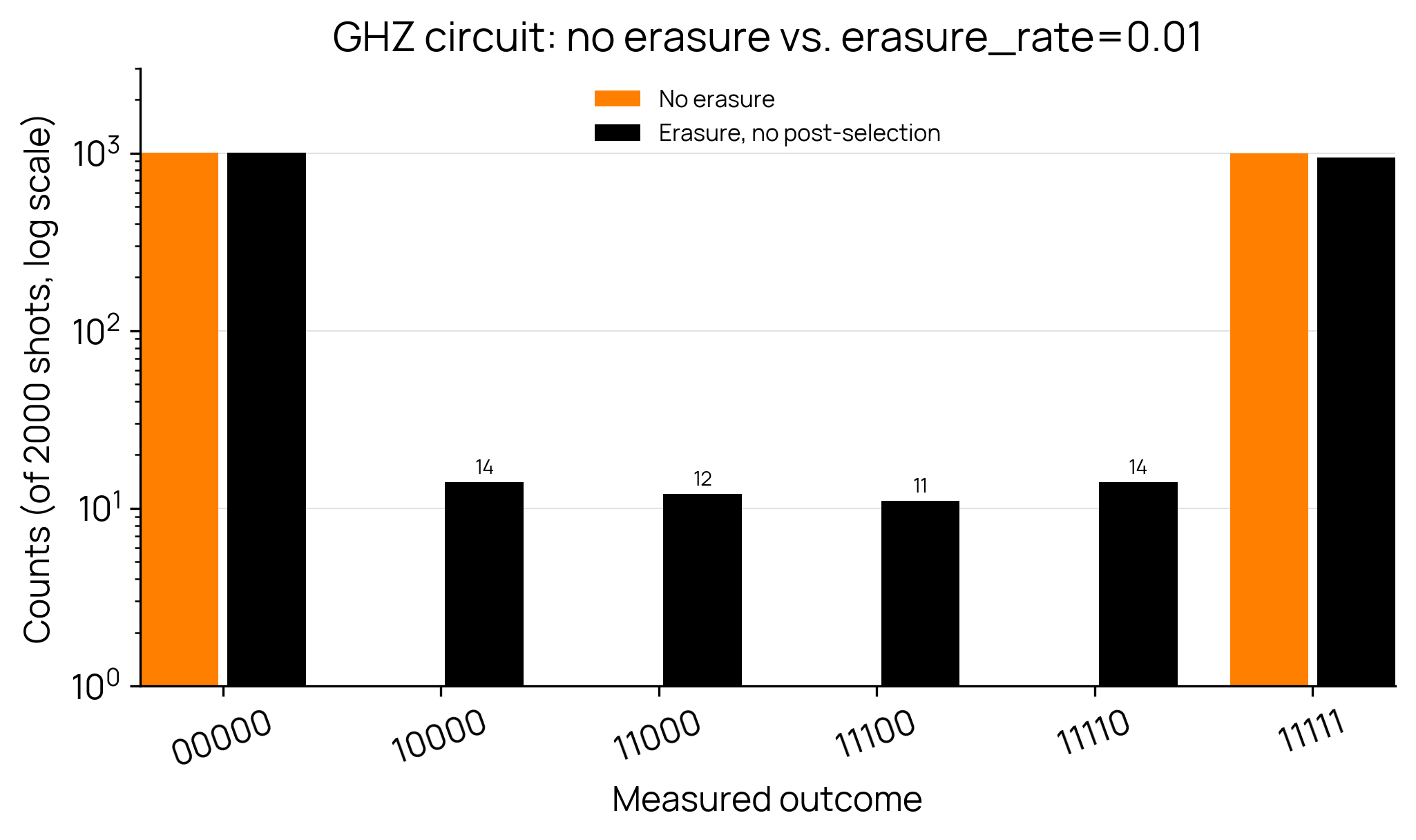

Outcomes other than 00000 and 11111 are shots where an erasure cut the run of cx gates short: entanglement never reached the remaining qubits, so those qubits measured 0. Nothing in the returned data marks these corrupted outcomes as such. Note that n_rejected and rejection_rate are non-zero even though no shots were discarded: with post_selection=False they report erasure incidence, not actual rejections, and n_accepted still equals the full repeats.



Erasure with post-selection

Setting post_selection=True discards those corrupted shots and re-runs until repeats accepted shots are collected:

>>> async def run():
...     async with OqcSdk(url=URL, authentication_token=TOKEN) as sdk:
...         job = sdk.create_job(
...             program=GHZ,
...             qpu_id=ERADO_QPU_ID,
...             config=EradoConfig(repeats=2000, erasure_rate=0.01, post_selection=True),
...             fetch_diagnostics=True,
...         )
...         proxy = await job.execute(timeout_s=300)
...         return proxy.results()[0].data["c"], job.metrics
>>> counts, metrics = run_async(run())
>>> set(counts) == {"00000", "11111"} and metrics["shots"] > 2000
True

For this run, counts and the relevant entries of metrics were:

{'00000': 1011, '11111': 989}

     shots: 2115
n_accepted: 2000
n_rejected: 115

Results are clean again: only 00000 and 11111 remain. shots (2115) now exceeds repeats (2000): the extra shots were simulated to replace the rejected ones, and retries are uncapped, bounded only by the task’s execution timeout. For circuits or erasure rates where that retry cost could be significant, job.submit() followed by await job.wait() is preferable to the blocking execute() used in these examples, the same recommendation as for other potentially long-running QPU jobs; see Re-running a Job in the Jobs documentation.



Post-selection cost

Because post_selection=True re-runs every rejected shot, its overhead grows with erasure_rate:

>>> async def run():
...     async with OqcSdk(url=URL, authentication_token=TOKEN) as sdk:
...         for rate in (0.002, 0.005, 0.01):
...             job = sdk.create_job(
...                 program=GHZ,
...                 qpu_id=ERADO_QPU_ID,
...                 config=EradoConfig(repeats=2000, erasure_rate=rate, post_selection=True),
...                 fetch_diagnostics=True,
...             )
...             await job.execute(timeout_s=300)
...             print(f"{rate}: {job.metrics['shots']}")
>>> run_async(run())
0.002: 2016
0.005: 2046
 0.01: 2115

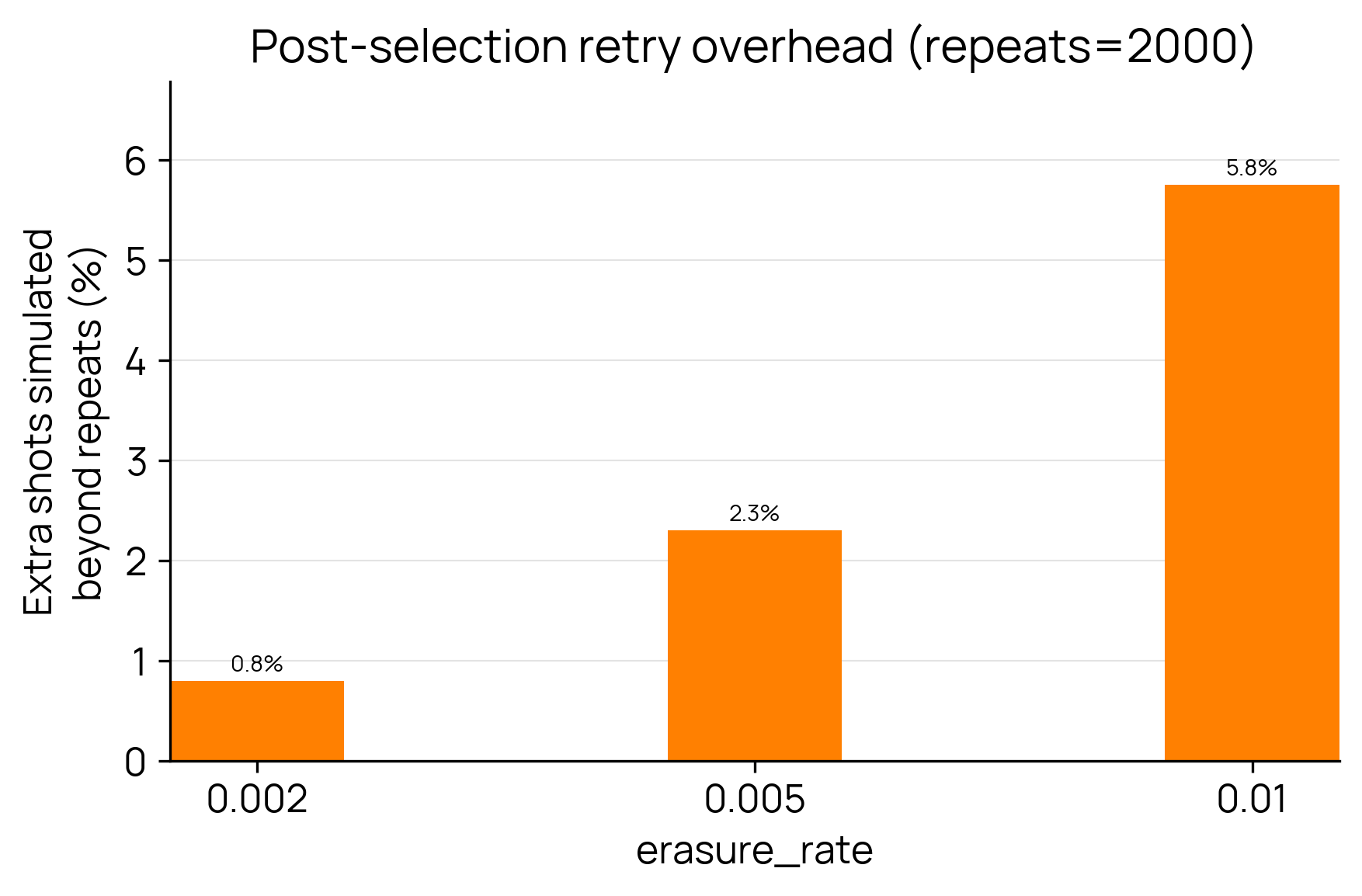

At erasure_rate=0.01 the overhead here is modest (under 6%), but this assumes accurate erasure detection: see Detection accuracy: false_positive_rate and false_negative_rate below for what happens when it isn’t.



Detection accuracy: false_positive_rate and false_negative_rate

false_positive_rate and false_negative_rate model imperfect erasure detection, and affect post_selection=True in two different ways. This compares the same erasure_rate=0.01 run above against a high false_negative_rate and a high false_positive_rate (values chosen to make the effect visible; real detector error rates are typically much lower):

>>> scenarios = {
...     "clean": dict(false_positive_rate=0.0, false_negative_rate=0.0),
...     "high false_negative_rate": dict(false_negative_rate=0.5),
...     "high false_positive_rate": dict(false_positive_rate=0.1),
... }
>>> async def run():
...     async with OqcSdk(url=URL, authentication_token=TOKEN) as sdk:
...         for name, rates in scenarios.items():
...             job = sdk.create_job(
...                 program=GHZ,
...                 qpu_id=ERADO_QPU_ID,
...                 config=EradoConfig(
...                     repeats=2000, erasure_rate=0.01, post_selection=True, **rates
...                 ),
...                 fetch_diagnostics=True,
...             )
...             proxy = await job.execute(timeout_s=300)
...             counts = proxy.results()[0].data["c"]
...             leaked = sum(n for o, n in counts.items() if o not in ("00000", "11111"))
...             print(name, "- shots:", job.metrics["shots"], "leaked outcomes:", leaked)
>>> run_async(run())
                   clean - shots: 2115 leaked outcomes: 0
high false_negative_rate - shots: 2079 leaked outcomes: 21
high false_positive_rate - shots: 3628 leaked outcomes: 0

With false_negative_rate=0.5, a small number of shots (21 out of 2000 here) leak through post_selection=True with corrupted outcomes: the erasure genuinely happened but wasn’t detected, so it was never rejected. This is exactly the limitation described in false_negative_rate’s row above: post-selection can only discard what it detects. With false_positive_rate=0.1 instead, the results stay perfectly clean (only 00000 and 11111), but shots jumps to 3628 (an 81% overhead, versus under 6% with no false positives): clean shots are being incorrectly flagged and discarded too, at real cost but no accuracy loss.

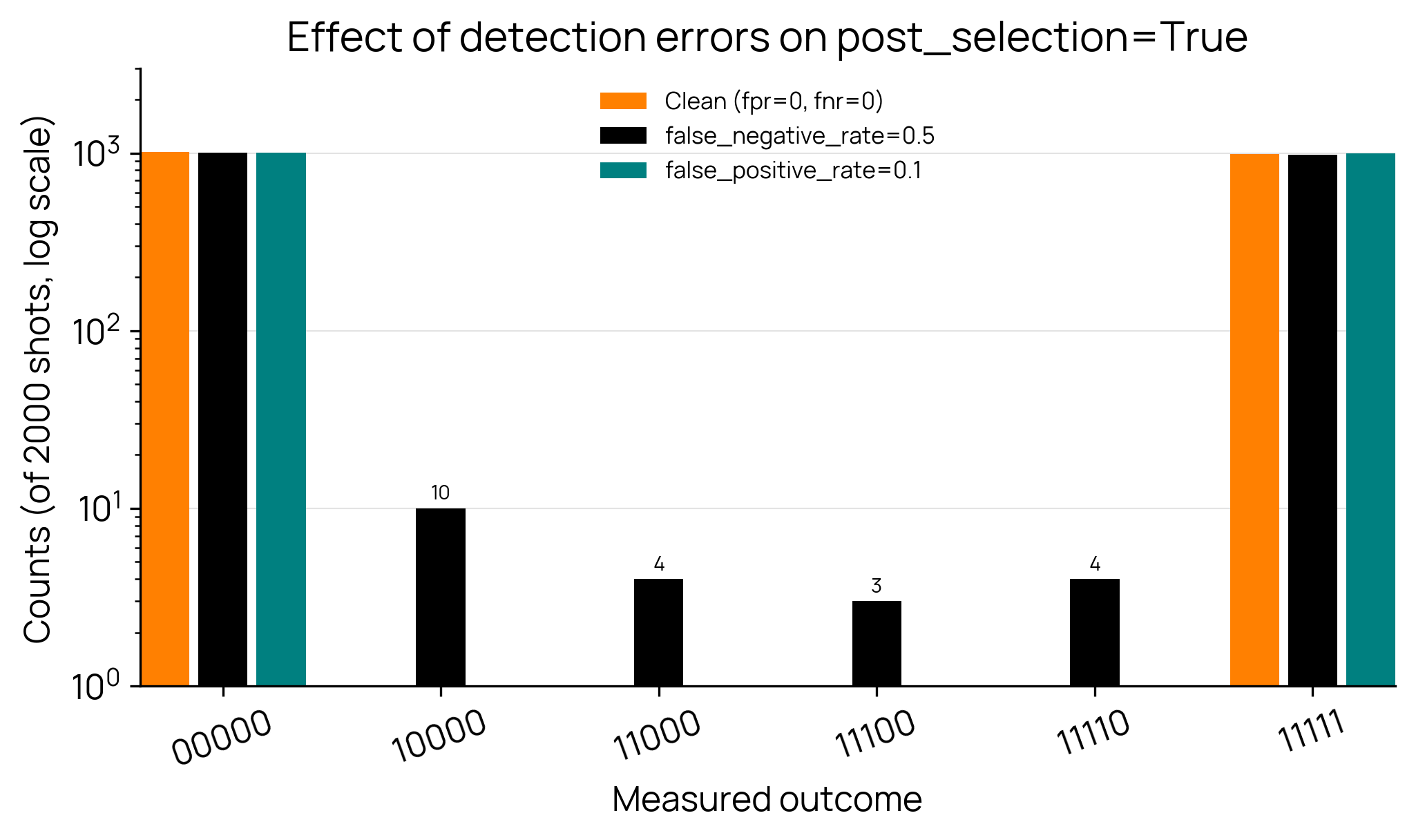

Only the false_negative_rate series has any counts at the corrupted outcomes; clean and false_positive_rate sit exactly on top of each other at 00000 and 11111, which is the visual signature of “costs more, but doesn’t corrupt results.”



Idling error

Configuring idling_error adds extra erasable gate positions during idle periods:

>>> async def run():
...     async with OqcSdk(url=URL, authentication_token=TOKEN) as sdk:
...         job = sdk.create_job(
...             program=GHZ,
...             qpu_id=ERADO_QPU_ID,
...             config=EradoConfig(
...                 repeats=2000,
...                 erasure_rate=0.01,
...                 idling_error=IdlingErrorConfig(),
...             ),
...             fetch_diagnostics=True,
...         )
...         await job.execute(timeout_s=300)
...         return job.metrics
>>> metrics = run_async(run())
>>> metrics["n_erasable_gates"] > 5 and metrics["circuit_depth"] == 6
True

For this run the relevant entries of metrics were:

n_erasable_gates: 17
   circuit_depth: 6

Compare this to n_erasable_gates=5 (and the same circuit_depth=6) for the identical circuit without idling_error (the earlier examples above): padding more than triples the number of erasable gate positions here without adding depth, since the scheduler fills idle time already present within existing layers rather than adding new ones. More erasable gates at the same erasure_rate means more chances for an erasure. idling_error can be combined with post_selection=True in the same way as the plain-erasure example above.

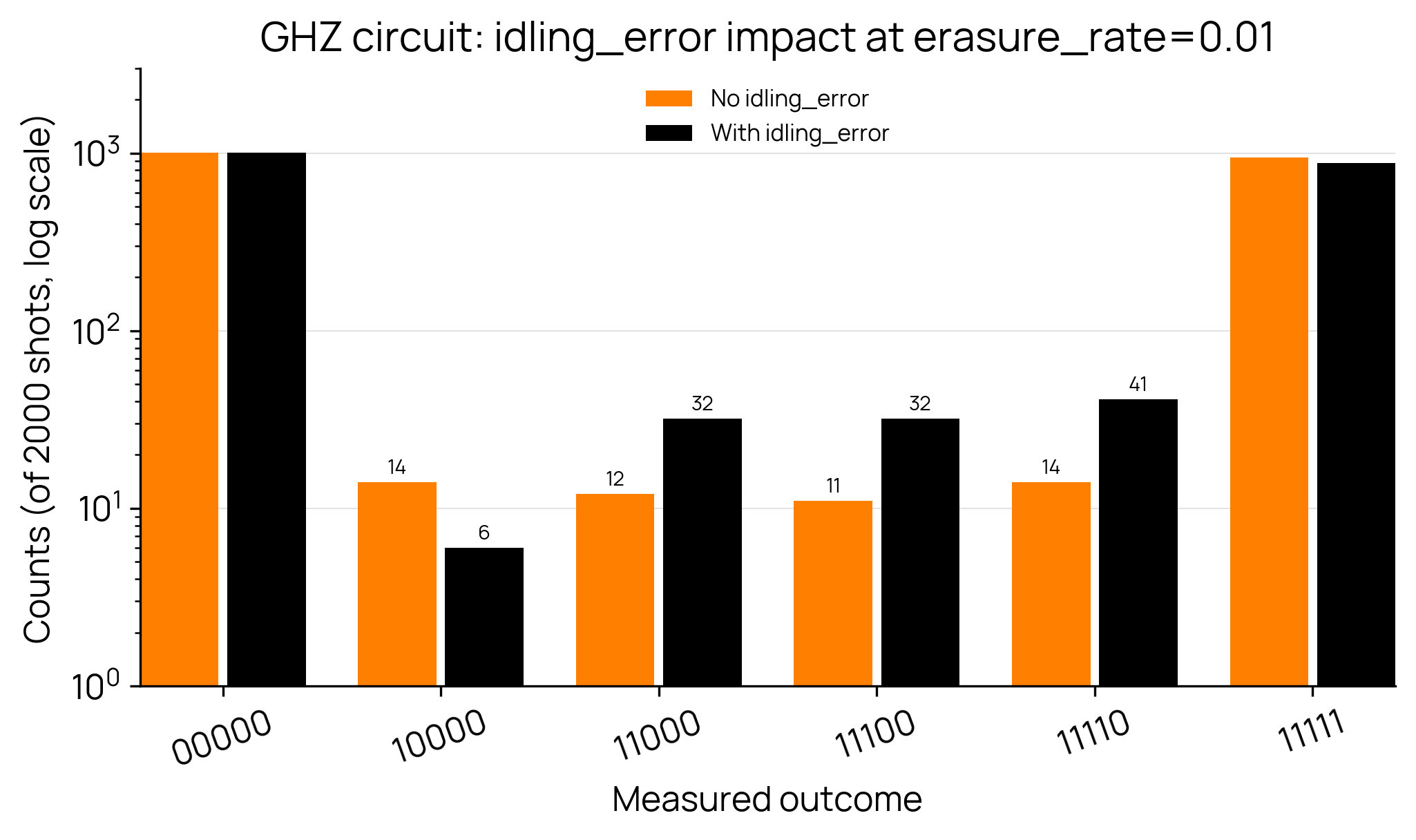

Most of the corrupted outcomes are visibly taller with idling_error enabled, tracking the roughly 3x jump in n_erasable_gates shown above.
